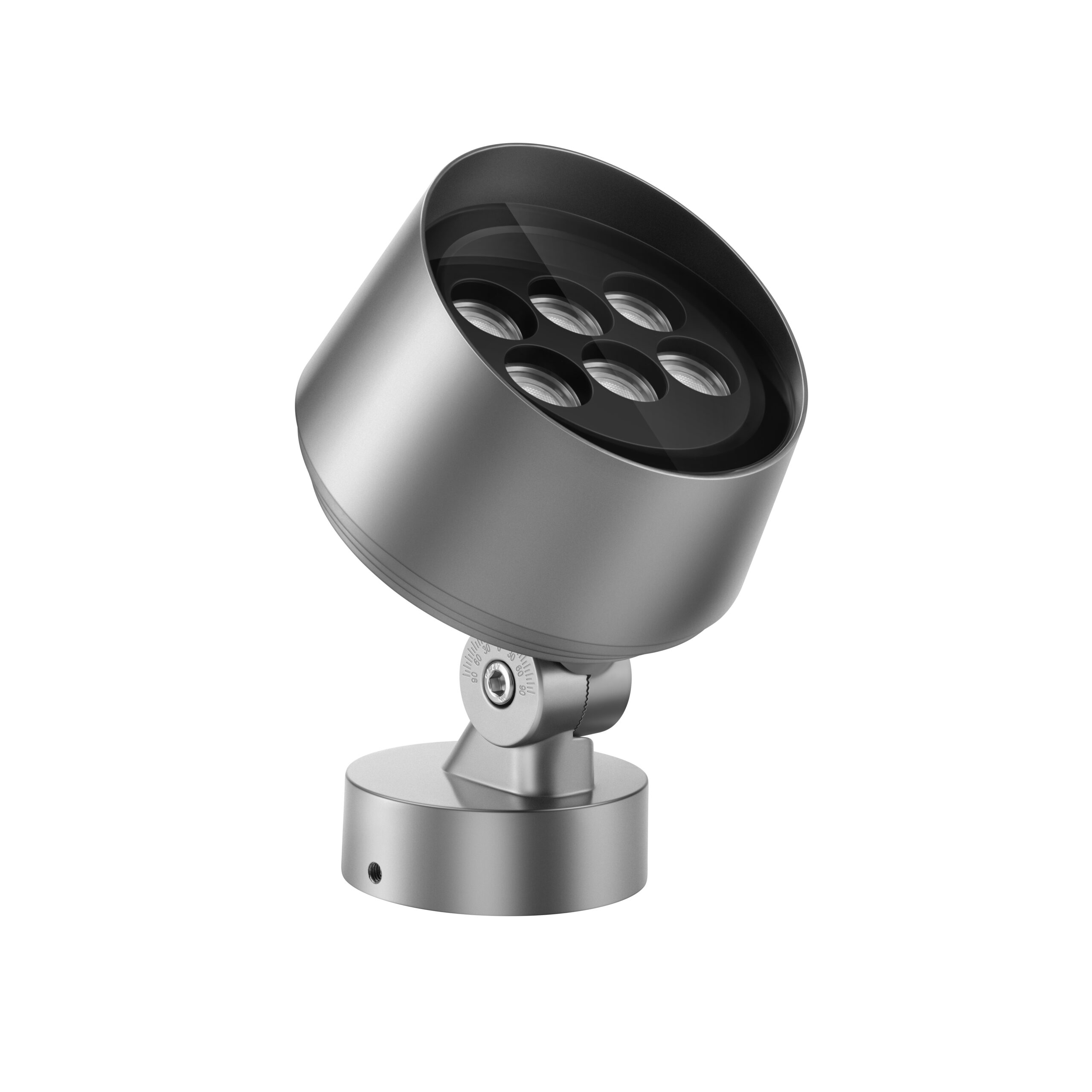

Medium-Power High-Output LED Floodlight – SL1137 Series
Reliable and Efficient LED Floodlighting for Commercial and Industrial Applications
The SL1137 Series Medium-Power High-Output LED Floodlight is an advanced lighting solution designed to provide superior brightness, energy efficiency, and precision beam control. With wattage options ranging from 30W to 60W, this floodlight is ideal for commercial exteriors, security applications, and architectural enhancement.
Why Choose the SL1137 Series?
1. High Lumen Output with Optimised Energy Efficiency
The SL1137 Series uses high-performance CREE and OSRAM LEDs, delivering maximum brightness with minimal energy consumption. The floodlight’s medium power range (30W-60W) makes it perfect for applications that require strong illumination without excessive power draw.
✔ Efficient lighting solution with optimised lumen-to-watt ratio
✔ Long lifespan of 50,000+ hours, reducing maintenance costs
✔ Stable performance in all conditions with wide voltage input (AC100-264V & DC24V options)
2. Robust IP66-Rated Weatherproof Construction
Built for outdoor and industrial environments, the SL1137 Series is IP66-rated, ensuring complete protection against dust, rain, and high humidity.
✔ Durable aluminium die-cast housing with fluorine-carbon coating for corrosion resistance
✔ High-strength tempered glass shield for impact protection
✔ Reliable operation in extreme temperatures (-25°C to 50°C)
For more details on IP ratings and outdoor lighting durability, check IP Ratings Explained.
3. Versatile Beam Angles & Mounting Options
The SL1137 Series provides multiple beam angles to suit different applications, allowing for focused, diffused, or wide-area illumination.
✔ Beam angles from 2.5° to 60° for tailored lighting control
✔ Pole-mounted, surface-mounted, and U-bracket options for flexible installation
✔ Ideal for targeted architectural lighting, pathway illumination, and security applications
4. Advanced Smart Control & Dimming Capabilities
The SL1137 Series integrates seamlessly with modern lighting control systems, offering precise dimming and automation features:
✔ DMX512 & RDM control for synchronised lighting effects
✔ 0-10V & DALI dimming compatibility for intelligent energy management
✔ PWM grey scale reaching 65,536 levels for smooth brightness transitions
For more on lighting automation, check DALI Control Systems.
SL1137 Series Variations & Specifications
Each model in the SL1137 Series is designed for specific lighting applications, offering different beam angles, power ratings, and mounting options:
| Model | Wattage | Beam Angles | Mounting Style | Applications |
|---|---|---|---|---|

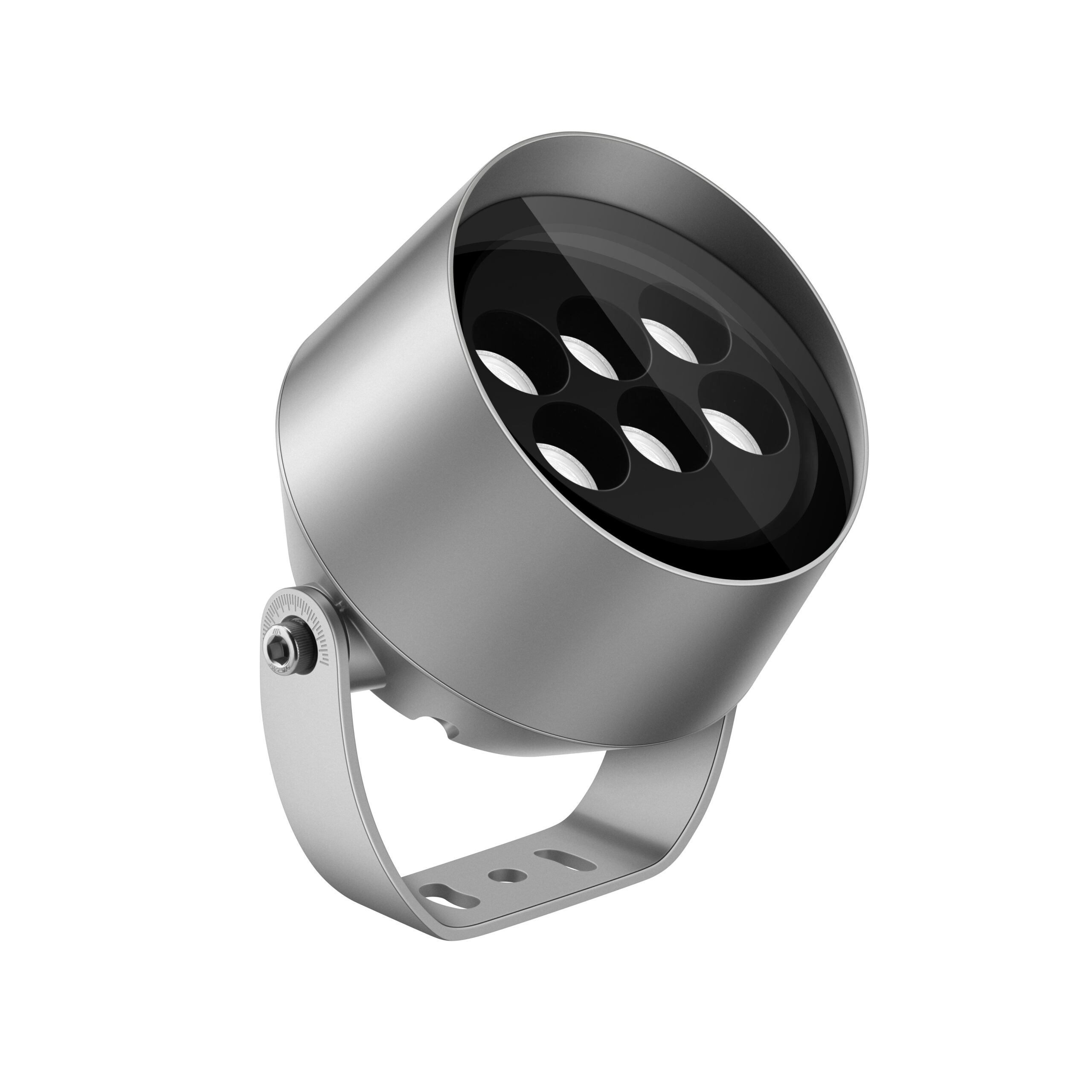

| SL1137FM-6 | 30W | 2.5° / 6° / 12° / 20° / 30° / 45° | U-bracket | Focused architectural lighting, signage lighting |
| SL1137FE-6 | 50W | 9° / 15° / 20° / 30° / 45° | Surface-mounted | Security lighting, commercial exteriors |
| SL1137FD-6 | 50W | 9° / 15° / 20° / 30° / 45° | Adjustable bracket | Pathway & facade lighting |
| SL1137FN-6 | 22W | 8° / 12.5° / 30° / 10×60° | Surface-mounted | Urban landscapes, retail exteriors |
| SL1137FF-6 | 50W | 15° / 20° / 30° / 45° | Pole-mounted | Perimeter security lighting |
| SL1137FC-18 | 30W | 15° / 24° / 36° / 60° | Surface-mounted | High-end architectural installations |

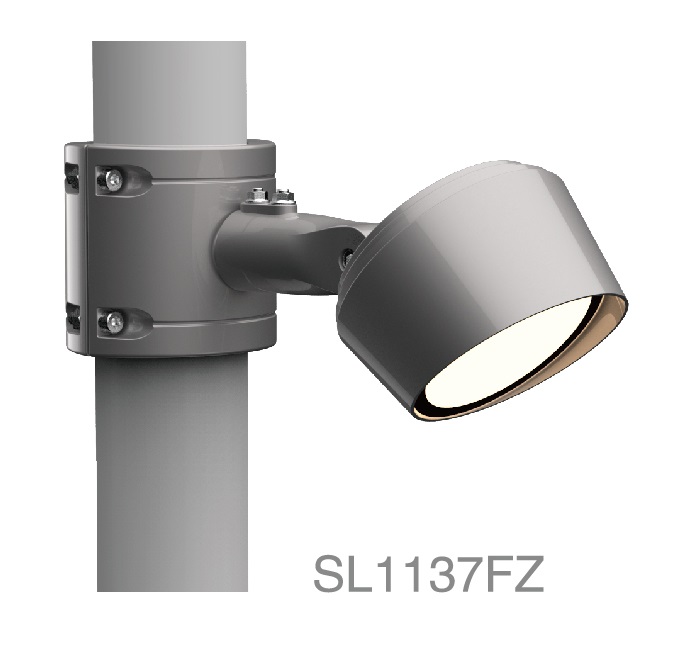

| SL1137FZ | 50W | 8° / 12.5° / 30° / 10×60° | Pole-mounted | Industrial & warehouse illumination |

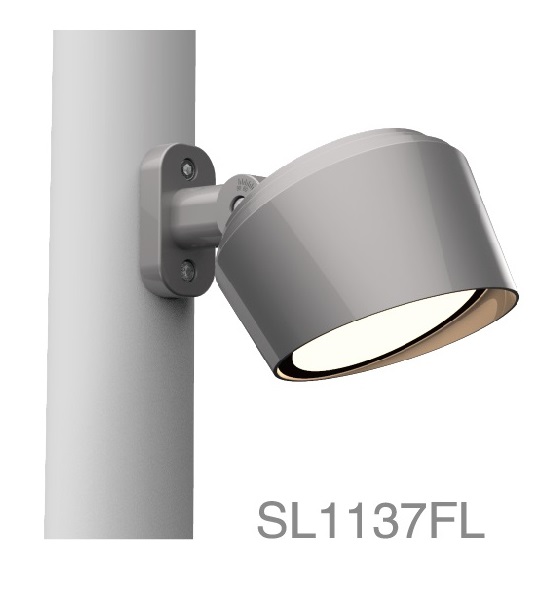

| SL1137FL | 50W | 15° / 20° / 30° / 45° | Pole-mounted | Urban lighting, sports courts |

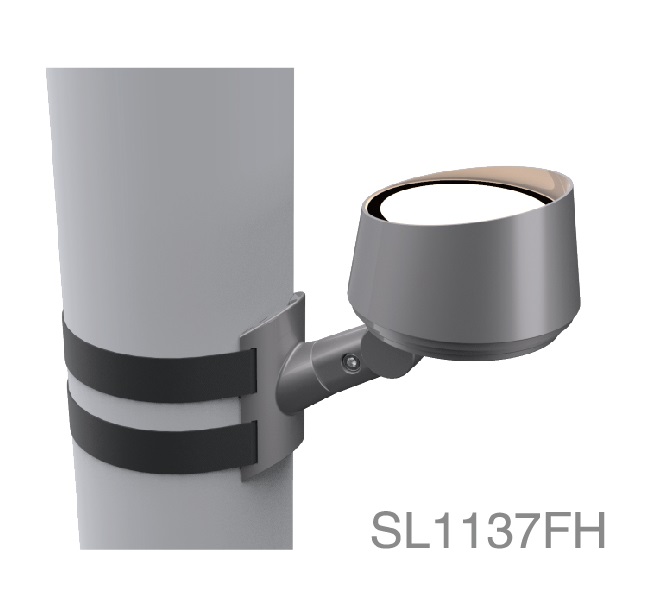

| SL1137FH | 50W | 15° / 20° / 30° / 45° | Pole-mounted | Security & commercial lighting |
With a range of models catering to different lighting needs, the SL1137 Series provides adaptable solutions for various industrial, commercial, and urban lighting applications. Whether for enhancing architectural aesthetics, illuminating pathways, or ensuring safety in high-traffic areas, this series offers precise lighting control and outstanding performance.
Choosing the Right Medium-Power High-Output LED Floodlight
1. Wattage & Application
- 30W Models → Best for focused architectural & pathway lighting
- 50W Models → Ideal for security lighting, commercial exteriors, and urban lighting
- 60W Model → Suitable for high-output applications requiring more power
2. Beam Angle Selection
- Narrow Beam (2.5° – 15°) → Best for long-distance spotlighting & facade lighting
- Medium Beam (20° – 30°) → Ideal for commercial exteriors & signage
- Wide Beam (45° – 60°) → Suitable for large-area floodlighting & security applications
Where to Buy the SL1137 Series LED Floodlight in Australia?
At Starflex Exteriors, we provide: ✔ Premium-quality LED floodlights tailored for architectural & commercial applications
✔ IP66-rated weatherproof construction for outdoor durability
✔ Smart control & dimmable options for customised lighting solutions
✔ Long-lasting, energy-efficient LED fixtures designed for optimal performance
Upgrade Your Outdoor Lighting Today!
Contact us for expert advice and custom product recommendations to find the perfect Medium-Power High-Output LED Floodlight for your project.
